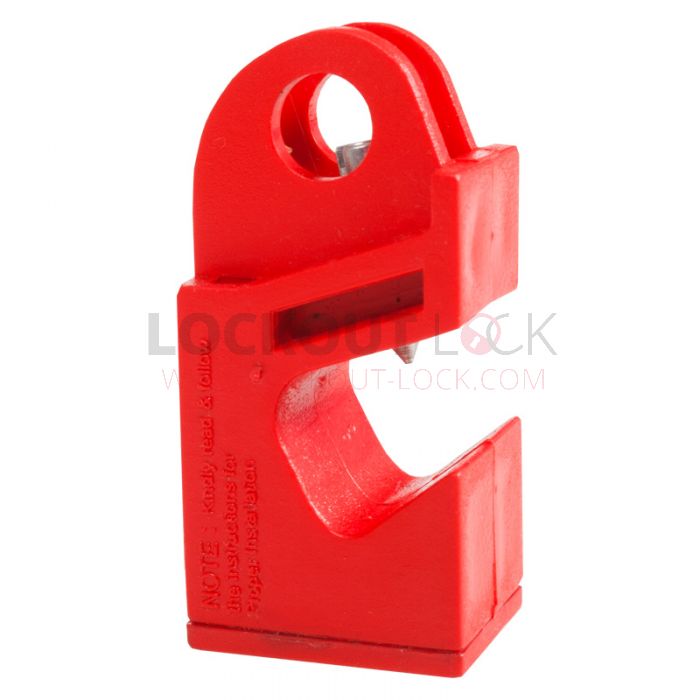

LT-UBL-D Universal Circuit Breaker Lockout - Square Edge

An easy-to-install, effective method for locking out access to both miniature circuit breakers (MCBs) and module case circuit breakers (MCBBs).

Part of our LT-UBL series, the 'D' version of this lockout has a square edge with a warning label and fits snugly against all MCBs and MCBBs. Installation is quick and easy; simply attach the lockout, use a screwdriver to tighten the screw and feed a padlock through the hole to prevent access to the screw.

You can install this lockout on both single and multi-pole breakers.

Key Features

• Universal solution for locking out access to miniature circuit breakers and module case circuit breakers
• Type D - square bottom with warning label
• Use a small screwdriver to secure in place by tightening the internal screw
• Space for attaching one lockout padlock to prevent access to the screw once installed
• Suitable for installation on both single and multi-pole circuit breakers

Alternative Versions Available

There are four different versions of the LT-UBL lockout. They are as follows:

• LT-UBL-A: Rounded with 'Tail'
• LT-UBL-B - Rounded without 'Tail'
• LT-UBL-C - Square with Warning Label and 'Tail'
• LT-UBL-D - Square with Warning Label and no 'Tail'
