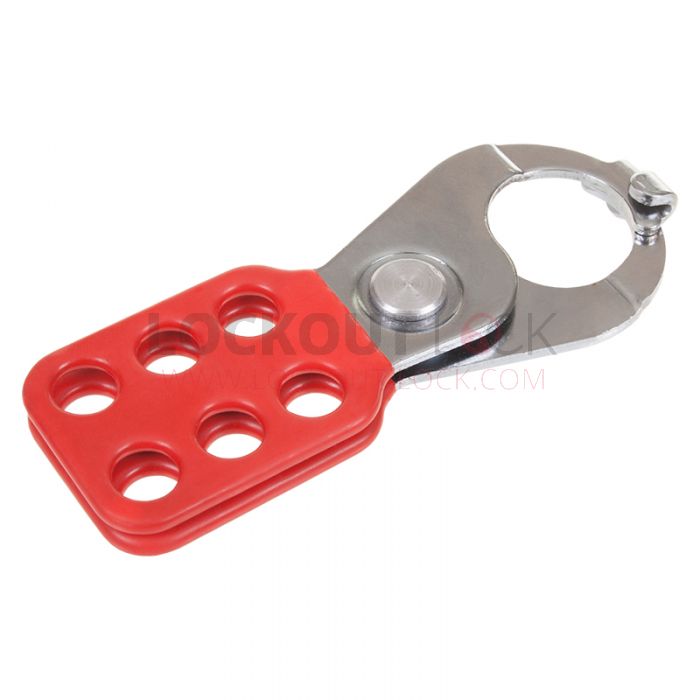

Small Double Locking Vinyl Coated Hasp
- Double locking system
- 5mm shackle
- Accepts up to six padlocks
SKU
LT-VCH-S-DL
MPN
ES-VCH-S-DL
In order to give extra security, these hasps have a double-lock function built into them that secures the device firmly to an energy source during lockout procedures.
Made of high quality tensile steel, this lockout hasp is capable of being firmly secured in place with up to six individual padlocks. The device has space underneath the jaws to accommodate for any padlocks.
The hasp is small in size and is best suited for use on the isolation points of smaller energy sources.
The lockout hasp itself is coated with a coloured vinyl sheen for extra comfort and visibility.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.
| Parameter | Measurements |
| A - Overall Height | 116mm |
| B - Shackle Length | 63mm |
| C - Hasp Length | 53mm |
| D - Hasp Width | 39mm |
| E - Hole Width X Height | 10mm x 10mm |
| F - Overall Width | 42mm |
| G - Inner Lock |
29mm |
| H - Top of Shackle |
9mm |
| I- Hasp Thickness | 9mm |
| J - Lock Width/Depth | 10mm |
| K - Number of Holes | 6 |
£3.45
£4.14 inc vat
In Stock:
Available Next Working Day*
