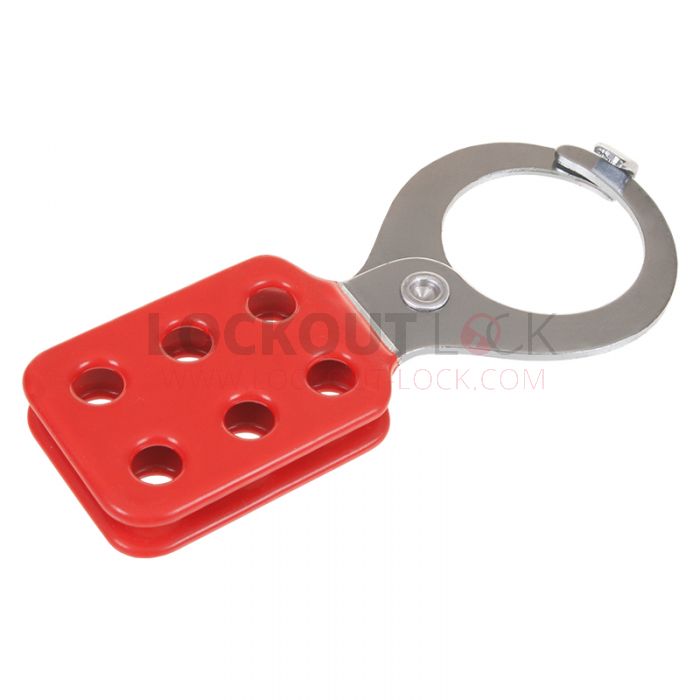

Secure energy sources firmly in place during lockout procedures by using this hasp.
The device is constructed from high tensile steel, which gives it the ability to be attached securely to energy sources and not be forcibly removed. The hasp contains space on the section underneath the jaw to attach up to six padlocks, thus keeping it from coming apart until all padlocks are removed at the end of the lockout procedure.
These hasps are also coated with a clear vinyl sheen which gives them a comfortable grip during operation, and also increases visibility during LOTO procedures.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.
Parameter | Measurements |
A - Overall Height | 122mm |
B - Shackle Length | 65mm |
C - Hasp Length | 57mm |
D - Hasp Width | 40mm |
E - Hole Width X Height | 10mm x 10mm |
F - Overall Width | 52mm |
G - Inner Lock |
36mm |
H - Top of Shackle |
9mm |
I- Hasp Thickness | 1.3mm |
J - Lock Width/Depth | 9mm |
K - Number of Holes | 6 |
Reviews
SKU | LT-VCH-P-SL |
---|---|
Manufacturer Part Code | ES-VCH-P-SL |
