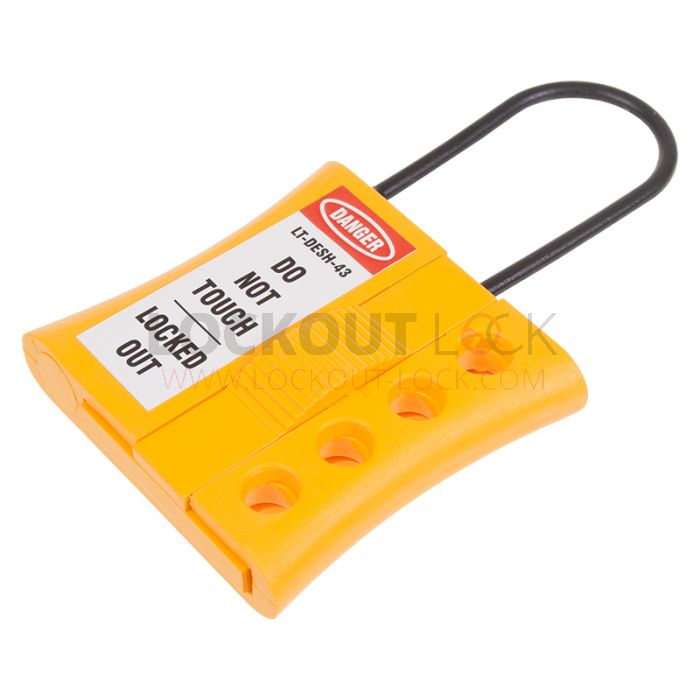

Insulated Lockout Slider Hasp - 4 Holes, 3mm Shackle
- Sliding section
- Non-conductive
- Attach up to four padlocks
SKU
LT-DESH-43
MPN
ES-DESH-43
These slider hasps are ideally suited for use on electrical applications, as the material the device is made from is completely non conductive. It is recommended they are used on devices such as electrical panels, miniature circuit breakers and other electrical applications.
The hasp itself is constructed from hard nylon, has space for up to four LOTO padlocks and has a 3mm shackle for easy security. The hasps are also bright yellow for increased visibility.
The devices are easily secured in place thanks to the patented sliding action, which allows users to easily take the devices apart and secure them in place around an energy source.
Hasp Dimensions
Use this table in combination with the reference image above.
| A - Overall Length | 100mm |
| B - Shackle Length | 47mm |
| C - Hasp Length | 53mm |
| D - Overall Width/Hasp Width | 61mm |
| E - Holes | 8mm x 8mm |
| F - Inner Shackle Width | 22mm |
| G - Shackle Width | 30mm |
| H - Top of Shackle | 4mm |
| I - Hasp Depth | 15mm |
| J - Shackle Depth | 3mm |
£4.40
£5.28 inc vat
In Stock:
Available Next Working Day*
