Heavy Duty Stainless Steel Hasp - 7 Lock
- Harsh/corrosive environments
- Attach up to seven padlocks
SKU
LT-SSH
MPN
ES-SSH

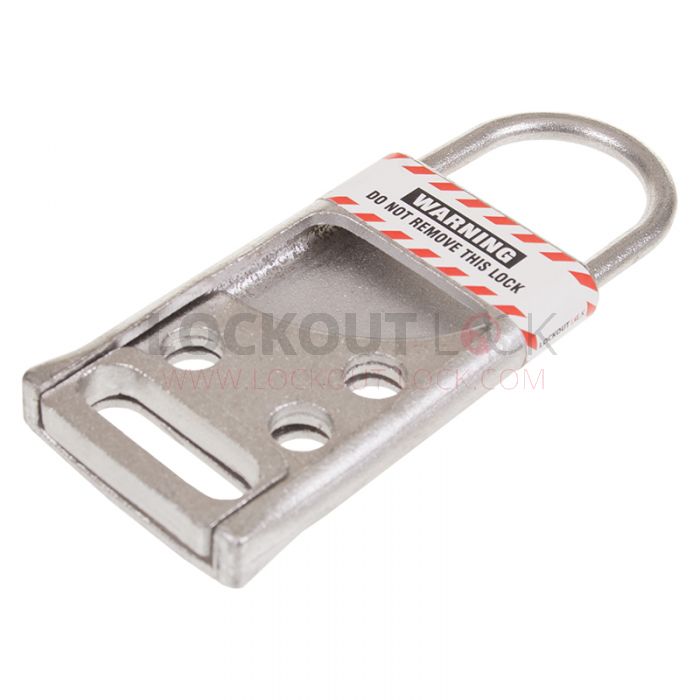

This lockout hasp, made from stainless steel, is suitable for use in environments where the hasp may be put under extreme stress or corrosion.
The hasp can be used to firmly secure various different types of energy source, and has space for the attachment of up to seven individual padlocks which should only be removed by a designated person.
This device has a shackle thickness of 5mm and 29mm spacing between the padlock for securing around energy sources.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.
| Parameter | Measurements |
| A - Overall Height | 116mm |
| B - Shackle Length |
37mm |
| C - Hasp Length |
79mm |
| D - Overall/Hasp Width |
43mm |
| E - Hole (H x W) |
10 x 10mm |
| F - Bottom Inner Lock |
3.1 x 10mm |
| G - Shackle Width |
37mm |
| H - Top Inner Lock Width |
28mm |
| I - Top of Shackle |
5mm |
| J - Hasp Width/Depth | 8mm |
| K - Lock Width/Depth | 5mm |
| L - Number of Holes | 4 |
Technical Information
Additional Information
SKU
LT-SSH
Manufacturer Part Code
ES-SSH
Heavy Duty Stainless Steel Hasp - 7 Lock
£8.99
£10.79 inc vat
£8.99
£10.79 inc vat
