Scorpio lockout hasps have two connection points, allowing them to be used on different sized applications.
The hasp comes apart with ‘scissor’ action, which means that each end has connection points that can unite together to clip around energy sources. When together, the hasp locks together firmly in place by use of up to six padlocks, which can be attached to the holes in the lockout device.
This particular scorpio hasp is powder coated, meaning it is resistant to rust. The main body of the device is a tempered steel sheet, which is durable enough to stay locked in place and can’t be easily forced.
The openings of this hasp have widths of 45mm and 20mm, meaning it is suitable for smaller and slightly larger applications.
HASP DIMENSIONS

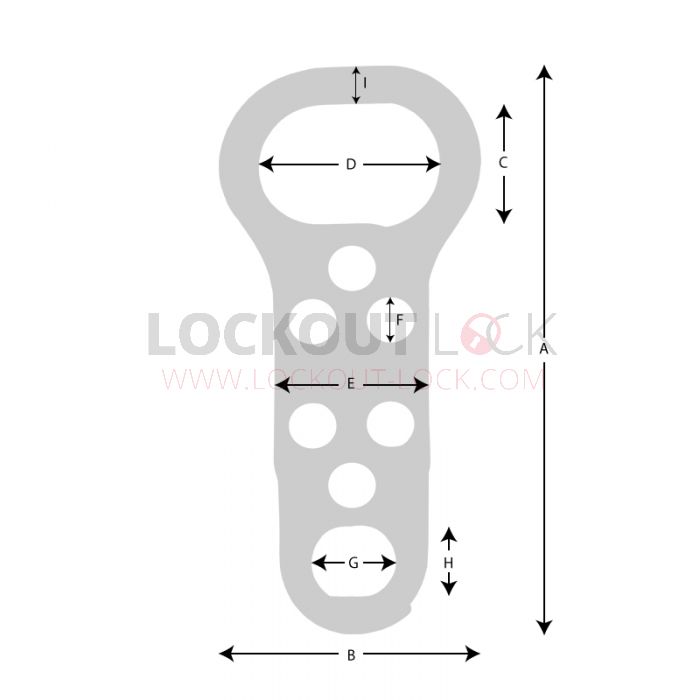

The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.
Parameter | Measurements |
A - Overall Height | 131mm |
B - Overall Width | 59mm |
C - Top Inner Lock Height |
31mm |
D - Top Innder Lock width |
41mm |
E - Hasp Width |
31mm |
F - Holes |
10 x 10mm |
G - Bottom Inner Lock Width |
22mm |
H - Bottom Inner Lock Height |
19mm |
I - Top of Shackle |
8mm |
J - Hasp Width/Depth | 5mm |
K - Lock Width/Depth | 4mm |
L - Number of Holes | 6 |
Reviews
SKU | LT-SCORPIO |
---|---|
Manufacturer Part Code | ES-SCORPIO |
Country of Origin | India |
